에스디엠티㈜

MG 겐츄리타입머신

가 격 원

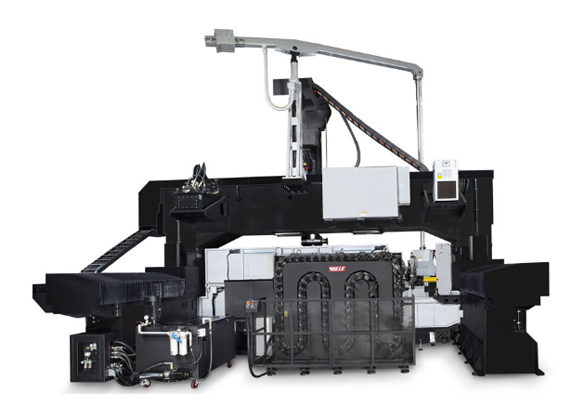

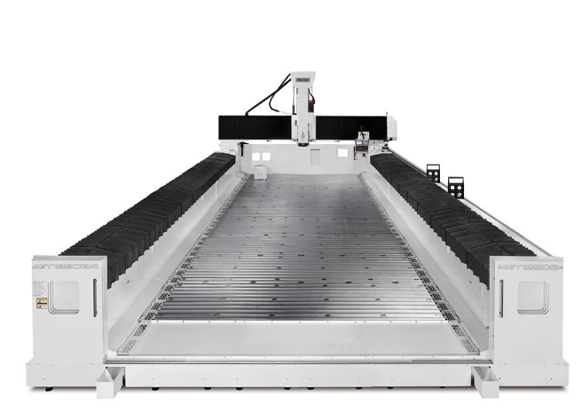

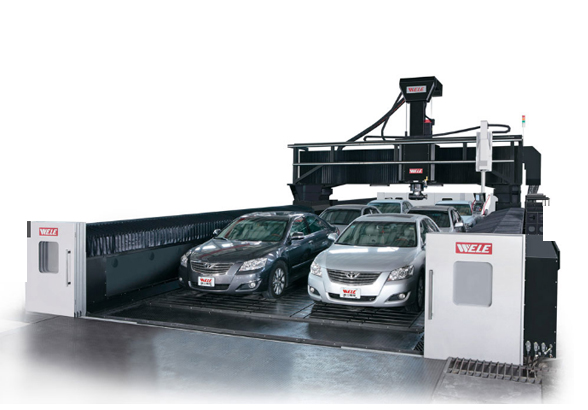

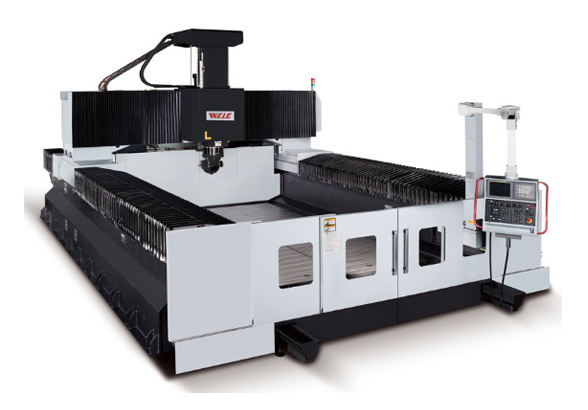

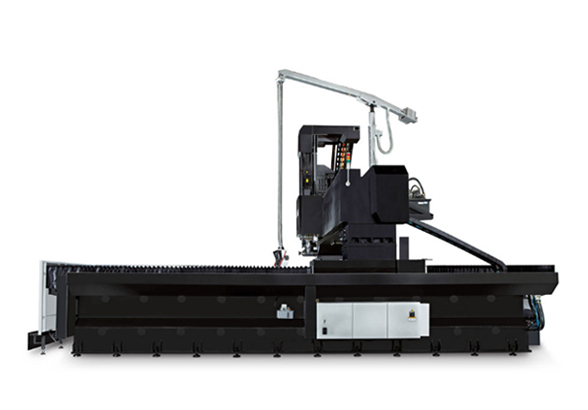

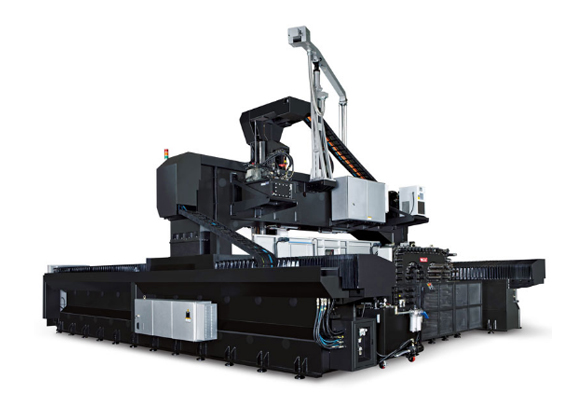

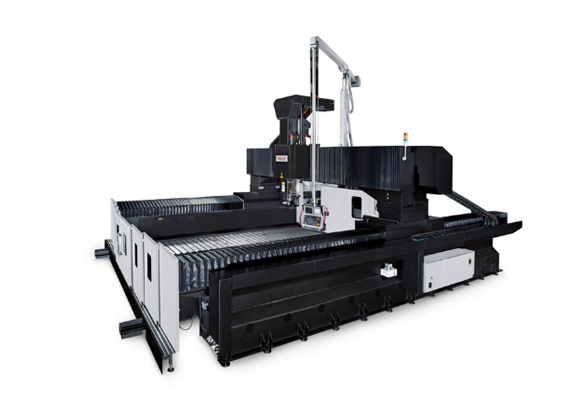

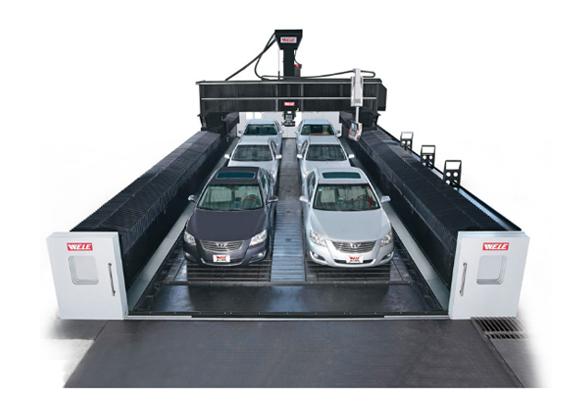

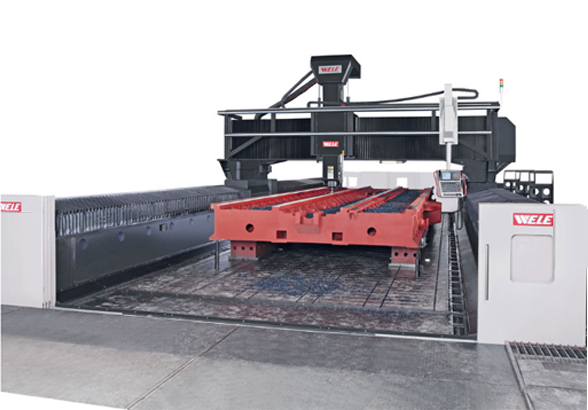

Longmen five-face machining center

ㆍThis product has been carefully designed, has a first-class structure, and the body is super rigid. Equipped with a high-rigidity gearbox spindle and 90-degree (horizontal head) (optional), heavy-duty cutting, high processing efficiency, accurate dimensions, and high quality parts. Especially suitable for manufacturing overweight and oversized parts in the smallest footprint!

Superior five-sided processing performance

ㆍThis series of new products has been specially designed with first-class structure, super rigid body, equipped with vertical and horizontal head magazine and vertical and horizontal tool magazine, which can be exchanged automatically. Equipped with a high-rigidity gear box, heavy cutting resistance, high machining efficiency, precise dimensions, and high quality parts. As long as you set it once, the five sides of the workpiece can be processed automatically! This product is especially suitable for the manufacture of large five-sided precision components, and is the perfect partner for your processing!

MG-x50

Technical specifications	unit	MG-650	MG-850	MG-1050	MG-1450	MG-1650
Workbench size (X*Y)	mm	6,000*4,800	8,000*4,800	10,000*4,800	14,000*4.800	16,000*4.800
X / Y / Z stroke	m	6/5/1	8/5/1	10/5/1	14/5/1	16/5/1
Workbench load	kg/cm 2	2,500
Rapid feed X / Y / Z	m/min	20/12/12
Spindle speed	max. rpm	6,000
Spindle power (kw) Torque (Nm)		22/26 626/740
Spindle transmission form	GR	Two-speed gear / stepless speed change
Tool magazine capacity	Cutter Location	32
Mechanical size (H)	mm	4,200
Floor space (W*D)	mm	12,275*8,560	14,275*8,560	16,275*8,560	21,800*8,560	23,500*8,560
Machine weight	kgs	104,000	126,000	148,000	200,000	220,000
Controller	Brand code	FANUC 0iMD (Std.) FANUC 31iMB (Opt.)

MG-x40

Technical specifications	unit	MG-540	MG-640	MG-840	MG-1040
Workbench size (X*Y)	mm	5,000*3,800	6,000*3,800	8,000*3,800	10,000*3,800
X / Y / Z stroke	m	5/4/1	6/4/1	8/4/1	10/4/1
Workbench load	kg/cm 2	2,500
Rapid feed X / Y / Z	m/min	10/15/12	20/15/12
Spindle speed	max. rpm	6,000
Spindle power (kw) Torque (Nm)		22/26 626/740
Spindle transmission form	GR	Two-speed gear / stepless speed change
Tool magazine capacity	Cutter Location	32
Mechanical size (H)	mm	4,200
Floor space (W*D)	mm	10,710*7,560	12,275*7,560	14,275*7,560	16,275*7,560
Machine weight	kgs	76,000	96,000	117,000	140,000
Controller	Brand code	FANUC 0iMD (Std.) FANUC 31iMB (Opt.)

MG-x35

Technical specifications	unit	MG-535	MG-635	MG-835	MG-1035
Workbench size (X*Y)	mm	5,000*2,800	6,000*2,800	8,000*2,800	10,000*2,800
X / Y / Z stroke	m	5 / 3.5 / 1	6 / 3.5 / 1	8 / 3.5 / 1	10 / 3.5 / 1
Workbench load	kg/cm 2	2,500	2,500	2,500	2,500
Rapid feed X / Y / Z	m/min	10/15/12	20/15/12	20/15/12	20/15/12
Spindle speed	max. rpm	6,000
Spindle power (kw) Torque (Nm)		22/26 626/740
Spindle transmission form	GR	Two-speed gear / stepless speed change
Tool magazine capacity	Cutter Location	32
Mechanical size (H)	mm	4,200
Floor space (W*D)	mm	10,710*7,060	12,275*7,060	14,275*7,060	16,275*7,060
Machine weight	kgs	70,000	82,000	106,000	130,000
Controller	Brand code	FANUC 0iMD (Std.) FANUC 31iMB (Opt.)

MG-x30

Technical specifications	unit	MG-530	MG-630	MG-830	MG-1030
Workbench size (X*Y)	mm	5,000*2,800	6,000*2,800	8,000*2,800	10,000*2,800
X / Y / Z stroke	m	5/3/1	6/3/1	8/3/1	10/3/1
Workbench load	kg/cm 2	2,500	2,500	2,500	2,500
Rapid feed X / Y / Z	m/min	10/18/12	20/18/12	20/18/12	20/18/12
Spindle speed	max. rpm	6,000
Spindle power (kw) Torque (Nm)		22/26 626/740
Spindle transmission form	GR	Two-speed gear / stepless speed change
Tool magazine capacity	Cutter Location	32
Mechanical size (H)	mm	4,200
Floor space (W*D)	mm	10,710*6,560	12,275*6,560	14,275*6,560	16,275*6,560
Machine weight	kgs	67,000	79,000	103,000	127,000
Controller	Brand code	FANUC 0iMD (Std.) FANUC 31iMB (Opt.)
