-5-axis simultaneous machining
-Suitable for aerospace aluminum alloy structural parts machining/High-precision mold processing
-Duo block structure design
-X/Y/Z axis driven by high-speed ball screws
| Configuration |

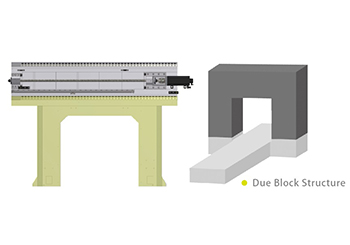

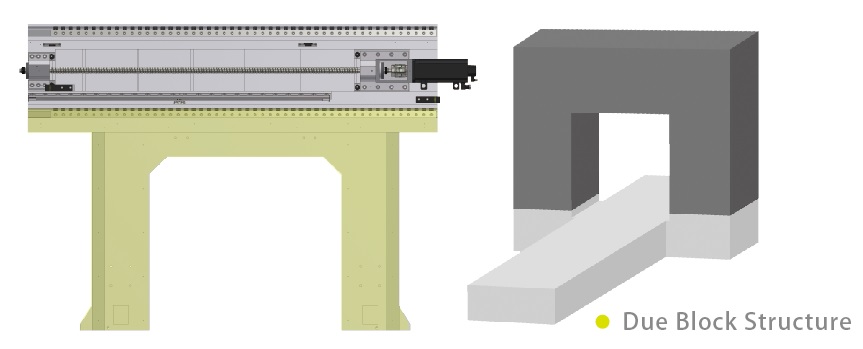

| DUO BLOCK STRUCTURE DESIGN Machine rigidity and working stability could be enhanced via duo block structure design. |
Larger machining area
Despite the smallest footprint in its class, this compact model features a wide machining area and complete functions.
High dynamics
3-axis with high acceleration and deceleration, especially suitable for multiple bulkheads of aluminum alloy material processing.
Fully enclosed splash guard
Lower noise and prevent spreading of chips and coolant liquid.
Driven by high-speed ball screw
X/Y/Z-axis are driven by double ball screws which could ensure the concentric of the moving part center and the weight center so that the vibration could be eliminated.
Cross beam flushing system (Only for aerospace)
High pressure pump with groups of powerful nozzles can quickly remove the chips.
| Specification |
| Specification | Unit | MT1520/1530 |
|---|---|---|
| X-axis | mm | 2,000/3,000 |
| Y-axis | mm | 2,000 |
| Z-axis | mm | 850 |
| Table Length | mm | 2,100/3,100 |
| Table Width | mm | 1,200 |
| MAX. Table load | tons | 3/5 |
| Rapid traverse | m /min | XYZ=30* |
| X.Y.Z-axis acceleration | m/sec² | 5 |
| Spindle taper | HSK63A | |
| Spindle speed | rpm | 24,000 |
Spindle power ( S 1 / S6) |
kW | 35/42 |
Spindle torque ( S 1 / S6) |
Nm | 55.6/67.2 |
| Recommended 2-axis head | Fork Type Milling Head | |
| Swivel/Rotation Torque | Nm | A=529/869 C=783/1,300 |
| Swivel/Rotation Speed | rpm | A=C=30(cont)/60(max) |
| Swivel/Rotation Angle | deg | A=±125° C=±360° |
| Clamping Torque | Nm | A=4,000 C=4,000 |
| Tool shank | pcs | 32T |
| Max. tool length | mm | 300 |
Max. tool diameter with adjacent tool |
mm | Ø75 |
Max. tool diameter without an adjacent tool |
mm | Ø130 |
| Weight | tons. | 20/24 |
